Multi-Agent AI System Architecture: How to Design Scalable AI Systems That Don’t Collapse in Production

Most multi-agent AI demos look impressive. Few survive their first production deployment.

In controlled environments, a single AI agent can appear capable of handling complex workflows, such as researching information, calling tools, generating outputs, and making decisions autonomously. In real operational environments, those capabilities quickly break down. Tasks grow unpredictable, tool interactions multiply, costs spike, and a single agent quickly becomes a bottleneck.

This is where multi-agent system architecture becomes necessary.

Instead of relying on one general-purpose agent, mature AI teams design systems composed of multiple specialized agents. Each agent focuses on a specific responsibility, like planning, execution, verification, data retrieval, or tool interaction, while orchestration layers coordinate how these components interact. This separation improves observability and makes complex workflows much easier to control.

However, adopting a multi-agent system creates new engineering challenges. Coordination logic becomes more complex, communication between agents must be governed, and infrastructure costs can grow rapidly if the system is not designed carefully.

This article explains how production-grade multi-agent AI systems are structured. We will examine the architectural patterns, orchestration models, and infrastructure decisions that allow organizations to scale agent-based systems without losing control or cost efficiency.

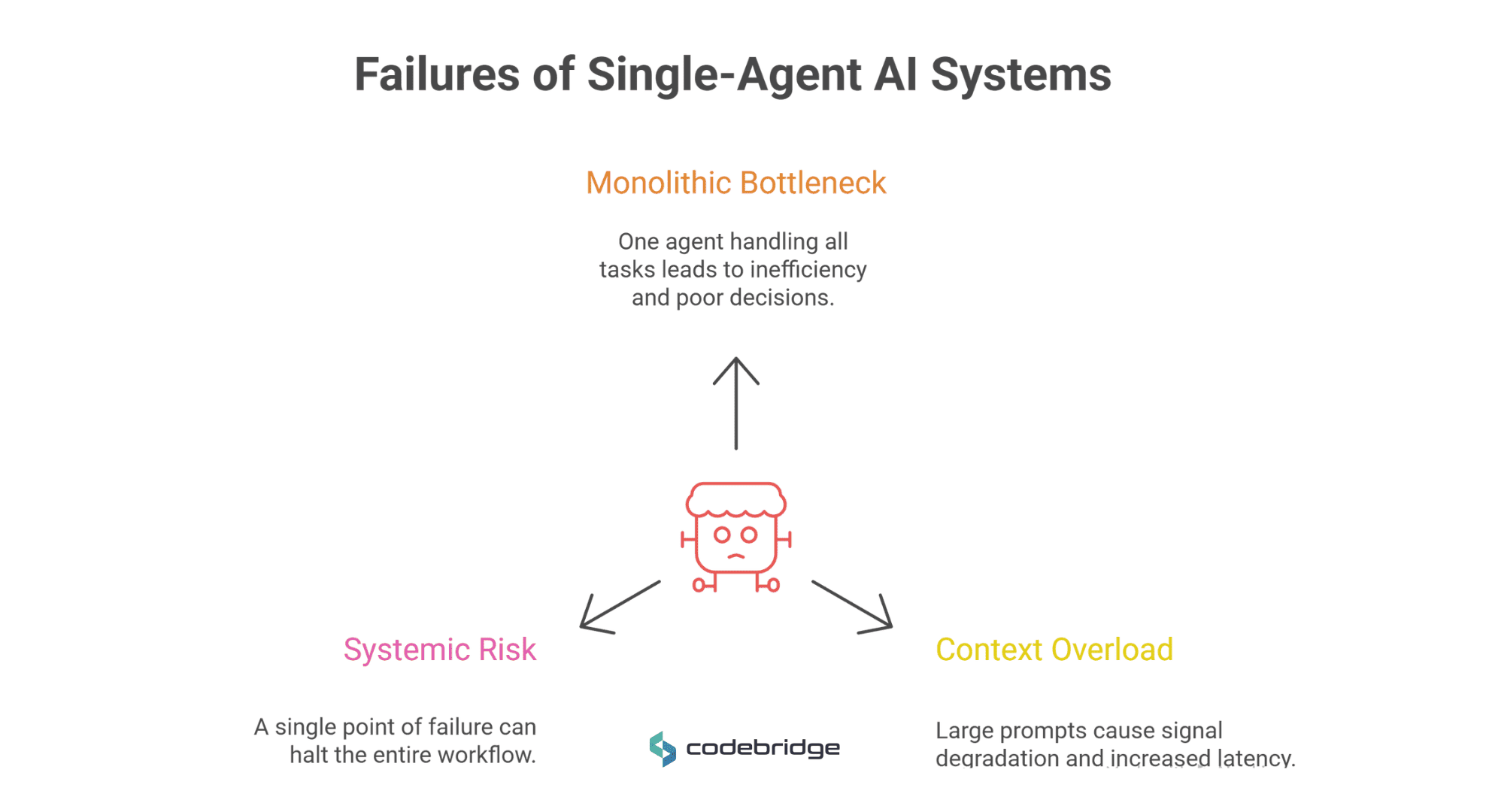

Why Single-Agent AI Systems Fail in Production

Single-agent AI systems rarely fail because the model itself is unintelligent. The problem is architectural. A monolithic agent struggles when it is responsible for every step of a complex enterprise workflow.

In small pilots, a single model can appear capable, but as systems interact with more tools and data sources, the architecture begins to break down.

1. The Monolithic Bottleneck and Context Switching

Production-grade workflows often require deep domain knowledge and long chains of tool interactions. In a single-agent architecture, one model must observe the environment, plan the task, select tools, execute actions, and interpret results.

This design creates a "monolithic bottleneck".

As the complexity of the task increases, the agent constantly switches between strategic planning and detailed execution. The same model must decide what to do next while also managing how each step is performed.

Research shows that as the number of available tools increases, single agents begin making poor decisions about which tools to use and when. Incorrect tool selection often leads to inefficient reasoning paths and unpredictable outputs.

Human organizations solve this problem by dividing work across specialists. A single-agent system attempts to manage every responsibility in one reasoning loop, which becomes unstable as operational complexity grows.

2. Context Overload and the "Lost in the Middle" Phenomenon

Another common failure mode appears inside the model’s context window. Many production systems attempt to maintain continuity by sending the entire interaction history, tool outputs, and system instructions back to the model with every request. Over time, this becomes a large prompt containing logs and stale information, which creates several problems.

Signal degradation.
As the context window is flooded with historical information, important instructions become harder for the model to prioritize. Foundation models can focus on older patterns in the prompt rather than the most relevant information. This behavior is also described as the “lost in the middle” phenomenon.

Latency and cost growth.
Longer prompts increase both latency and cost. Larger context windows require more tokens to process and extend the time required for each model response.

Scaling limits.
Even with expanding context windows, real workloads eventually exceed practical limits. Systems that combine retrieval results, tool outputs, and conversation history quickly approach the boundaries of what a single prompt can manage.

3. The Systemic Risk of a Single Point of Failure

Single-agent systems also introduce reliability risks at the system level. When one agent controls the entire workflow, the model becomes a single point of failure. If the agent misinterprets an instruction or fails during execution, the entire process stops.

There is no built-in mechanism to validate decisions before actions are taken.

Enterprise environments often require balancing competing priorities across departments. For example, a sales workflow may prioritize speed while logistics systems prioritize cost efficiency. In a single-agent setup, these competing goals must be resolved within a single prompt, which often leads to rigid or illogical outputs that do not reflect actual organizational priorities.

Without separate agents representing different responsibilities, it becomes difficult to model these competing priorities in a reliable way.

The limitations of single-agent systems have led many teams to adopt Multi-Agent System (MAS) architectures.

MAS distributes responsibilities across multiple specialized agents, instead of relying on one model to handle every step of a workflow. Each agent focuses on a defined role, such as planning, execution, data retrieval, or validation, while an orchestration layer coordinates how these components interact.

This shift mirrors how complex work is handled in human organizations: responsibilities are divided so different specialists can operate within clear boundaries.

The following section examines the core components of a multi-agent architecture and how these agents are structured inside production systems.

Core Components of a Multi-Agent AI Architecture

In a production Multi-Agent System (MAS), the system is structured as a set of cooperating components, each responsible for a specific function. Most production deployments implement these components as separate services or runtimes connected through an orchestration layer that manages task routing and tool access.

To design such systems reliably, architects typically structure the architecture around three foundational elements: agent roles, memory layers, and tool interfaces.

Specialized Agent Roles

In a multi-agent system, responsibilities are distributed across agents with clearly defined roles. This division of responsibilities prevents a single model from becoming responsible for every decision and action in a workflow.

Planners and orchestrators
These agents interpret user intent and break larger objectives into smaller executable tasks. They determine which agents should handle each step and track the progress of the workflow.

In most architectures, this coordination logic runs in an orchestration service that manages agent calls, tool usage, and state updates.

Workers and specialists
Worker agents perform specific tasks using defined tools or data sources. Each worker typically focuses on a narrow domain such as code generation, document analysis, financial data retrieval, or market research. Restricting the scope of each agent improves output quality and reduces reasoning errors.

Reviewers and validators
Production systems often include dedicated agents that verify outputs before results are returned or committed to downstream systems. These agents evaluate responses against rules, acceptance criteria, schemas, or quality checks to reduce hallucinations and detect incorrect reasoning.

The Memory Layer

Managing context is a core engineering challenge in multi-agent systems. With MAS, organizations don’t treat the prompt as a growing block of text. Now, production architectures separate different types of state into distinct memory layers.

1. Working context

This is the minimal set of information required for a single model invocation. Each agent receives only the data relevant to the task it is performing, as limiting the prompt scope improves reliability and reduces token usage.

2. Durable sessions

Long-running workflows require a persistent record of events. Many systems maintain structured execution logs that capture actions, tool calls, and intermediate results. This allows workflows to pause for human review or resume after interruptions without losing system state.

3. Long-term knowledge stores
   Persistent knowledge is usually stored outside the prompt in searchable databases or vector indexes. Agents retrieve information only when needed through explicit retrieval calls rather than including the entire knowledge base in every prompt.
4. Artifacts
   Large externalized state objects, such as heavy CSVs or PDFs, addressed by name and version. Agents load these artifacts only when required through dedicated tools, preventing prompt size from growing uncontrollably.

The Tool Interface Layer

Tools are external capabilities, such as APIs, databases, or web search, that agents invoke to interact with the environment. In reality, most useful work performed by an agent, retrieving data, executing transactions, running queries, and generating artifacts, happens through these interfaces.

Production architectures introduce a tool interface layer that separates tool definitions from the agents themselves. In this model, tools are registered in a central service and exposed through standardized schemas. Agents request tool usage through the orchestration layer, which handles execution, logging, and permission checks.

Modern architectures increasingly rely on the Model Context Protocol (MCP), which provides a standardized interface for discovering and invoking external tools at runtime.

For enterprise deployments, this layer also becomes a critical security boundary. The orchestration layer controls which agents can access which tools, enforces authentication, and logs every action

Modern architectures increasingly utilize the Model Context Protocol (MCP) to provide a structured, dynamic registry where agents can discover and use tools at runtime without hard-coding specific API stubs.

Together, these components, specialized agents, layered memory systems, and controlled tool interfaces, form the foundation of a production multi-agent architecture. The next step is understanding how these agents coordinate their actions and communicate during complex workflows.

Orchestration and Communication Patterns Between Agents

Once multiple agents exist inside a system, the primary engineering challenge becomes coordination. Organizations have to decide which agent should act next, how results move between agents, and how the system maintains consistency when tasks fail or run in parallel.

In most production systems, orchestration is implemented as a workflow service or orchestration runtime that manages agent execution through queues, state transitions, and event logs. The orchestrator receives a task, determines which agent should handle the next step, sends the request, and records the result before advancing the workflow. This service acts as the control layer that tracks progress, enforces execution rules, and prevents agents from operating without shared context.

In practice, orchestration determines who decides which agent runs next, how results move between agents, how system state is stored, and how failures are handled.

Centralized Orchestration

The most common architecture in enterprise systems is centralized orchestration. In this model, a single orchestration service coordinates all agent activity.

The orchestrator receives a task, evaluates the current system state, and determines which agent should execute the next step. Worker agents perform their assigned tasks and return results to the orchestrator rather than communicating directly with other agents.

1. Decision control: The orchestrator determines the next agent to run. This decision is typically based on workflow rules or planning outputs generated by a planning agent.
2. Result exchange: Agents return outputs to the orchestrator, which stores the result and routes it to the next agent in the workflow.
3. State tracking: Execution state is maintained in structured storage, such as workflow logs or state databases. Tool calls, intermediate outputs, and validation results are recorded so that workflows can resume or be audited later.
4. Error handling: If an agent fails or produces invalid output, the orchestrator determines how the system should respond. Common responses include retries, fallback agents, or escalation to human review.
5. Concurrency management: The orchestrator can run multiple agents in parallel when tasks are independent. Queue systems or task schedulers distribute work across worker agents while maintaining a consistent system state.

Centralized orchestration provides predictable behavior and clear control over execution. For this reason, most businesses implement this model in production agent systems.

Distributed Coordination (Peer-to-Peer)

Some systems allow agents to communicate more directly with each other rather than routing every interaction through a central controller. In these architectures, AI agents communicate directly without a central hub, making local decisions through negotiation.

One emerging approach to supporting this style of interaction is the Agent-to-Agent (A2A) Protocol. A2A defines a structured method for agents to communicate with each other across systems and frameworks. Agents exchange standardized messages that include task requests and capability descriptions.

A2A primarily addresses three challenges in distributed agent systems:

1. Structured agent messaging
   Agents communicate through well-defined message formats rather than unstructured prompts. This makes interactions easier to validate, log, and route across systems.
2. Capability discovery
   Agents can advertise the services they provide — such as research, planning, or data analysis — allowing other agents to discover and invoke them dynamically.
3. Negotiation and delegation
   Agents can request work, respond with proposals, or return results, enabling task delegation between agents without relying entirely on a central orchestrator.

However, distributed coordination is typically used in limited parts of a system rather than as the sole orchestration model. This approach can improve flexibility in complex workflows, but it introduces additional coordination challenges.

Without a single controller enforcing priorities, systems must carefully manage task duplication, conflicting actions, and inconsistent state updates.

MCP vs. A2A

It is important to distinguish A2A from protocols such as the Model Context Protocol (MCP).

• MCP standardizes how agents interact with tools and external systems.
• A2A focuses on communication between agents themselves.

In production, both layers often coexist: A2A enables agent collaboration, while MCP provides standardized access to APIs and other external capabilities.

Hierarchical Coordination

Larger systems sometimes combine both patterns through hierarchical coordination. In this structure, a top-level orchestrator manages high-level objectives and assigns major tasks to supervisory agents. Each supervisor then coordinates a smaller group of specialized worker agents responsible for executing detailed tasks.

This layered structure allows complex workflows to be broken into manageable segments while still preserving centralized visibility at the top level of the system.

Centralized vs. Distributed vs. Hierarchical

Control Planes and Conflict Resolution in Multi-Agent Systems

Multi-agent systems move into production environments, and organizations must introduce mechanisms that ensure autonomous agents operate securely and within defined business constraints. This responsibility is typically handled by the control plane — a supervisory layer that governs how agents interact with tools, data, and each other.

In many architectures, the control plane runs as a separate service layer alongside the orchestration system. While the orchestration layer manages task execution and workflow sequencing, the control plane enforces policies, identity rules, and operational safeguards.

Agents request to pass through the control plane, where they are validated against governance policies before being allowed to proceed.

Several components typically support this layer.

1. An agent registry tracks active agents, their roles, and their permissions.
2. An identity and access management (IAM) system assigns verifiable identities to agents and enforces role-based access control.
3. A policy engine evaluates whether specific actions — such as API calls, database queries, or tool usage — are permitted.

In parallel, monitoring and logging systems collect telemetry on agent behavior, allowing teams to detect anomalies such as repeated failures, unexpected tool usage, or runaway execution loops.

Conflict Resolution in Multi-Agent AI System Architecture

Another essential function of the MAS is conflict resolution. Conflicts typically arise when agents compete for shared resources, attempt incompatible actions, or optimize for different objectives within the same workflow. Production systems resolve these situations through operational mechanisms rather than complex theoretical algorithms. For example:

1. Task prioritization, where higher-priority workflows override lower-priority tasks.
2. Resource scheduling, which regulates access to shared APIs, databases, or compute resources through queues and rate limits.
3. Validation checkpoints, where outputs from one agent must be verified before subsequent steps continue.
4. Fallback strategies, such as retrying tasks, delegating work to alternative agents, or escalating uncertain outcomes for human review.

Taken all together, these mechanisms allow organizations to maintain coordination and stability even as large numbers of agents operate concurrently across complex workflows.

Strategic Trade-Offs: When NOT to Use Multi-Agent Systems

While MAS architectures offer flexibility, modularity, and parallel reasoning, they also introduce significant complexity. In production environments, adding agents increases the system's surface area for failure, creates significant latency penalties, and can lead to an economic collapse of the project's ROI. Therefore, a pragmatic architecture strategy begins with a simple principle: use the simplest system that reliably meets the requirements.

The Tax of Architectural Complexity

Adding agents expands both the computational and operational footprint of the system.

• The Token Multiplier: Research and field reports, notably from Anthropic and Microsoft, indicate that a multi-agent system can consume up to 15 times more tokens than a single-agent chat session to achieve the same objective. This increase in token usage directly impacts margins and can make high-volume applications economically non-viable.
• Trajectory Variance and Debugging: In a MAS, identical prompts can lead to widely different outcomes across different runs. This phenomenon is also known as "trajectory variance".

Diagnosing why a system failed becomes significantly harder when the error could reside in the orchestrator’s delegation, a specialist’s execution, or a validator’s misinterpretation.

• Security Surface Area: Each additional agent introduces new interaction points where prompt injection or data manipulation could propagate through the system. Multi-agent architectures also increase the risk of privilege transitivity, where a low-permission agent indirectly triggers actions through a higher-privileged agent.

The Read-Heavy vs. Write-Heavy Distinction

A recurring field lesson in enterprise AI is the distinction between "read-heavy" and "write-heavy" workloads.

• Read-Heavy Success: MAS is exceptionally effective at parallelizing information gathering, such as concurrent research across disparate data sources.
• Write-Heavy Brittleness: Autonomous systems that perform write actions, such as modifying production code, updating databases of record, or triggering irreversible workflow automation, are notoriously brittle. Conflicting actions between agents can create irreconcilable states, leading to system corruption or catastrophic errors.

For these high-stakes operations, practitioners recommend write-light architectures where agents propose actions that are then gated by Human-in-the-Loop (HITL) approval.

Ultimately, Gartner predicts that over 40% of agentic AI projects will be canceled by the end of 2027 due to underestimated complexity and cost. Strategic success depends on reserving the MAS architecture for complex tasks that truly require parallel exploration, distinct domain expertise, and a level of fault tolerance that a monolithic generalist cannot provide.

Conclusion

Multi-agent systems can unlock powerful capabilities for organizations dealing with complex workflows, distributed knowledge, and multi-step decision processes. However, the same properties that make MAS architectures flexible, autonomy, modularity, and parallel execution, also introduce operational risks.

For businesses, success depends less on deploying agents and more on building systems where those agents remain observable, governed, and aligned with business goals.

Before scaling a multi-agent system, decision-makers should evaluate their architecture against the following production-readiness checklist:

• Bound Autonomy: Are strict guardrails and action whitelists in place for all write operations?
• Apply Least Privilege: Does each agent have access only to the data and tools required for its specific role?
• Mandate Observability: Does the infrastructure capture structured thread logging and message flows between agents?
• Design for Failure: Is there deterministic scaffolding, including retries and rollback capabilities, built into the orchestration layer?
• Start Small, Scale Horizontally: Is the initial rollout focused on a narrow, well-scoped workflow where ROI justifies the compute cost?
